eepos move – Move Loads Effortlessly
Lifting axis for manipulators
The advantages of the aluminum lifting axle
eepos move
- Heavy-duty, smooth-running industrial lifting aid, backlash-free and low-maintenance even for off-center loads.
- External item grooves enable various mounting options.
- Fast pre-assembly and assembly using standardized components like extruded profiles, bearing units, and more.
- Quick and easy design of different variants using the online “Move designer” configuration tool.
- The eepos move lifting axis was developed for tool handling, container, and load transport up to 500 kg, with a standard torque absorption of 2.500 Nm, including off-center force capability.
- The installation dimensions and stroke of the lifting axes are customized to the customer's specifications.
- eepos move S and L can be delivered as purely mechanical lifting axes or fully equipped with a lifting motor or pneumatic control.
- Available optionally with fixed or rotating mounting flange.
Easy and safe handling of loads up to 500 kg, even with off-center weightsWith the development of the eepos move lifting axis, we have consistently enhanced and expanded our XY aluminum modular system to enable easy and ergonomic load handling in the Z direction.
The lifting axis is constructed from heavy-duty extruded aluminum profiles and can be operated electrically or pneumatically. The adjustable guide saddles feature bearings running on high-precision, hardened round steel, ensuring excellent smoothness and low-wear performance.
Thanks to the special eepos guide, the lifting axis with its double or triple telescope operates completely play-free. It safely handles off-center loads up to 2500 Nm. If desired, strokes of several meters are possible. Attachments, such as energy chains, can be easily mounted on the external, item-compatible grooves.
With the move Designer Configuration Tool, customer-specific solutions can be calculated with exact precision. In just a few clicks, the exact dimensions, forces, weights, and installation details of the eepos lifting axes are determined, and a quote is generated. You’ll instantly receive all technical data and pricing. Our team is happy to assist you in selecting models and versions based on lifting height, working radius, safety, and drive options.
Lifting axes have numerous applications across industry, mechanical engineering, and trade. In the load-bearing sector, they transport heavy and bulky objects that conventional lifting devices, such as chain hoists, cannot handle. These lifting aids also enhance efficiency in internal logistics and order picking. They quickly and ergonomically lift loads up to 500 kg. As electric lifting aids in assembly, they assist with maneuvering in hard-to-reach areas—such as vehicle interiors—making it safer and easier to handle items like windows, glass panes, rollers, plates, and barrels.
With the lifting aid from eepos you can significantly improve workplace and Ergonomics and efficiency in the workplace. Production processes become more ergonomic, helping to protect and strengthen the operator’s back and overall health. This positively impacts all work activities and boosts productivity.
Maintenance and Service of Your Lifting AidsIf desired, our service team will assist you with the assembly and maintenance of your lifting equipment. This ensures smooth work processes and extends the service life of your handling equipment. We’re also happy to organize on-site employee training sessions covering the functions and proper use of lifting aids.
The Right Solution for Every ApplicationWith its eepos move system, eepos offers lifting aids for fast lifting and movement of workpieces up to 500 kg at high speeds. Our lifting axis handling systems come in three types: the eepos move S is designed for loads up to 250 kg, with a bending moment capacity of 400 Nm and a torsional moment of 600 Nm. The eepos move M and L models are built for heavier loads up to 500 kg, available in two- or three-stage versions, and support bending moments up to 2.500 Nm and torsional moments up to 1.400 Nm.
You can find our current prices daily in eeworld. Simply register, log in and use the price list. There are also numerous configuration tools available to you.
Discover the advantages of our free eeworld portal! Here, you can access tools for configuring crane systems and media columns, along with price lists, a wealth of downloads, and essential technical information.
The media column for energy, signals and your own solutions.
Easy and quick installation on walls and columns - for loads up to 500 kg.
eepos move up to 500 kg – the lifting axis for your company
The eepos move up to 500 kg is the perfect lifting axle for your company if you have to move heavy loads.
With a load capacity of up to 500 kilograms, you can move and transport heavy loads effortlessly. Our lift axle is robust and reliable, so you can rely on it to deliver top performance in even the most demanding work environments.
With the eepos lifting axes you can optimize your workflows and work faster and more efficiently. You also save time and money because with our lifting axle you need less staff and equipment to move heavy loads.
Trust in our lifting axis – the eepos move.

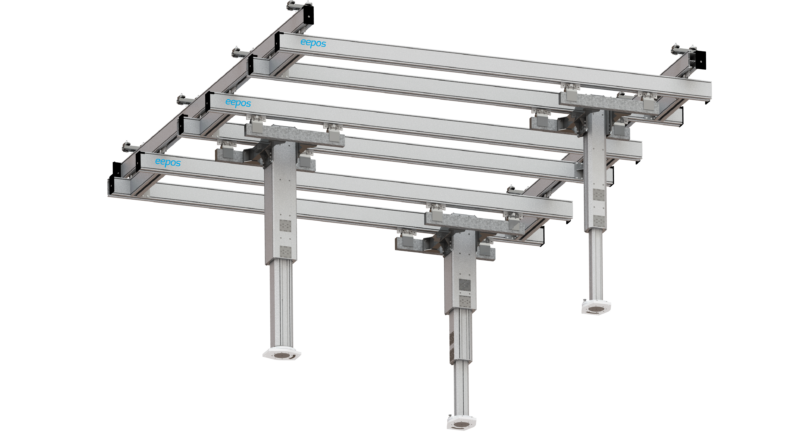

Possible areas of application for the eepos move lifting axis
The eepos move lifting axes offer numerous possible areas of application in the area of tool handling and the transport of containers and loads up to 500 kg and 2.500 Nm torque absorption with off-center forces. The installation dimensions and stroke can be individually adapted to the needs of the customer.

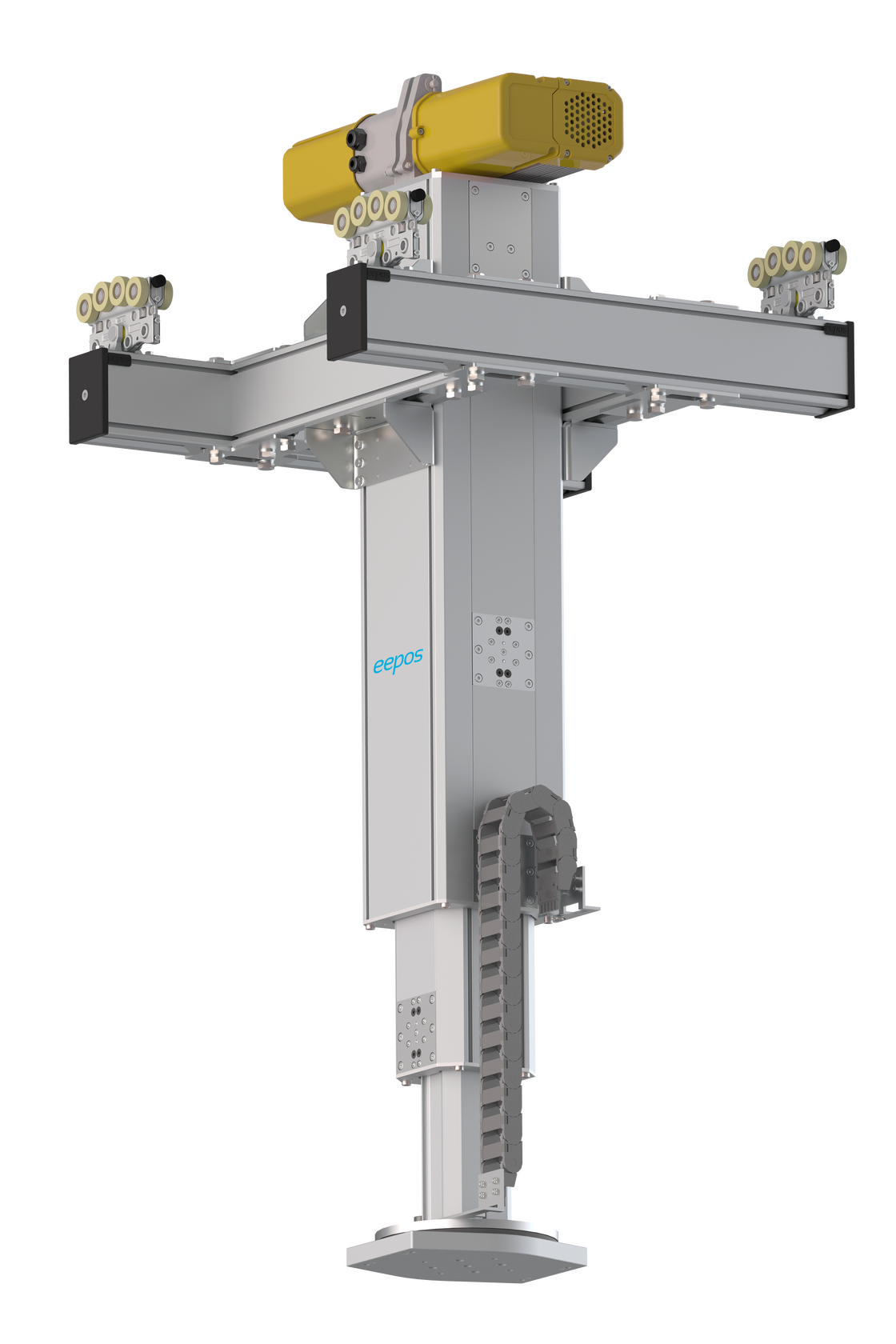

Whether as a single lifting axis or including a lifting motor or pneumatic control - the eepos move S and L lifting axles can be used extremely flexibly. Optionally, the equipment can be expanded with a trolley frame and pivot bearing.
Discover the possibilities that our lifting axles offer you!
Our lifting axis can be operated electrically or pneumatically
Our lifting axes are versatile and can be operated either electrically or pneumatically.
An electric lifting axis offers the advantage of more precise positioning and control, while a pneumatic lifting axis usually has a higher load capacity.
No matter which variant you choose, we offer you the highest quality and reliability.
Our lifting axes are specially tailored to your individual requirements and therefore offer you the optimal solution for your area of application.
Trust in our experience and know-how in the area of lifting axles and choose an electric or pneumatic lifting axle from eepos.

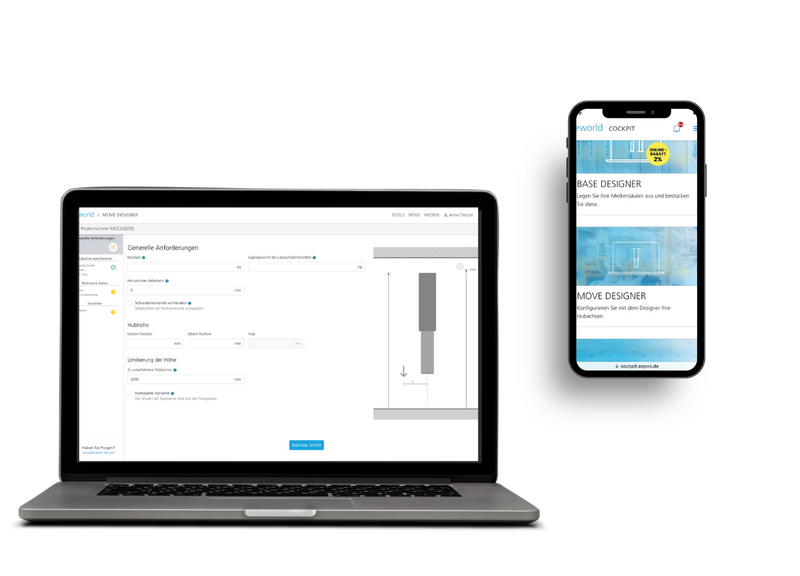

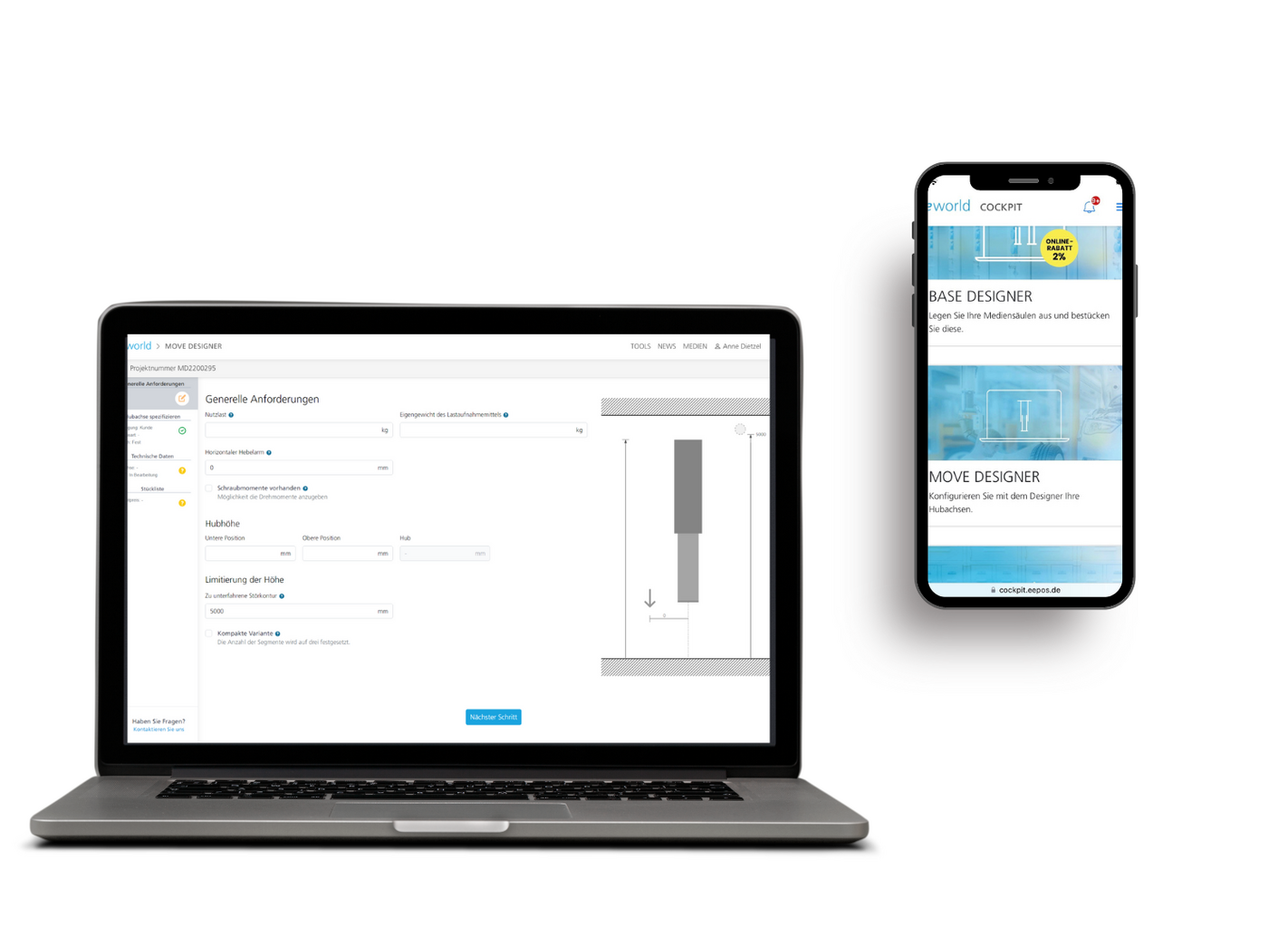

Individual design of your lifting axis with the “move designer”
With our innovative online configuration tool, the “Move designer”, the individual design of your lifting axis becomes child’s play. Regardless of whether it is conventional or electric lifting axes, our configurator allows you to design different variants quickly and easily.
You don't need to do complicated calculations or be a technology expert to get the best result. The “Move designer” guides you step by step through the process and allows you to configure a lifting axis that meets your requirements.
Convince yourself of the advantages of our configuration tool now and experience a new level of flexibility and efficiency.
