eepos base – Media Supply Made Easy
Flexibility through energy columns
The Advantages of Our Energy Columns
- Optimal provision of electricity, data, compressed air, gas, or cooling water to each desired workplace.
- Full flexibility: Can be mounted on the floor, ceiling or crane system
- Feed-in also possible from above, below or from the side
- Optional swivel boom solutions are available with a load capacity of up to 100 kg and a boom length of 3 meters.
- Elegant and robust design with aluminum housing, offering high corrosion protection and scratch resistance.

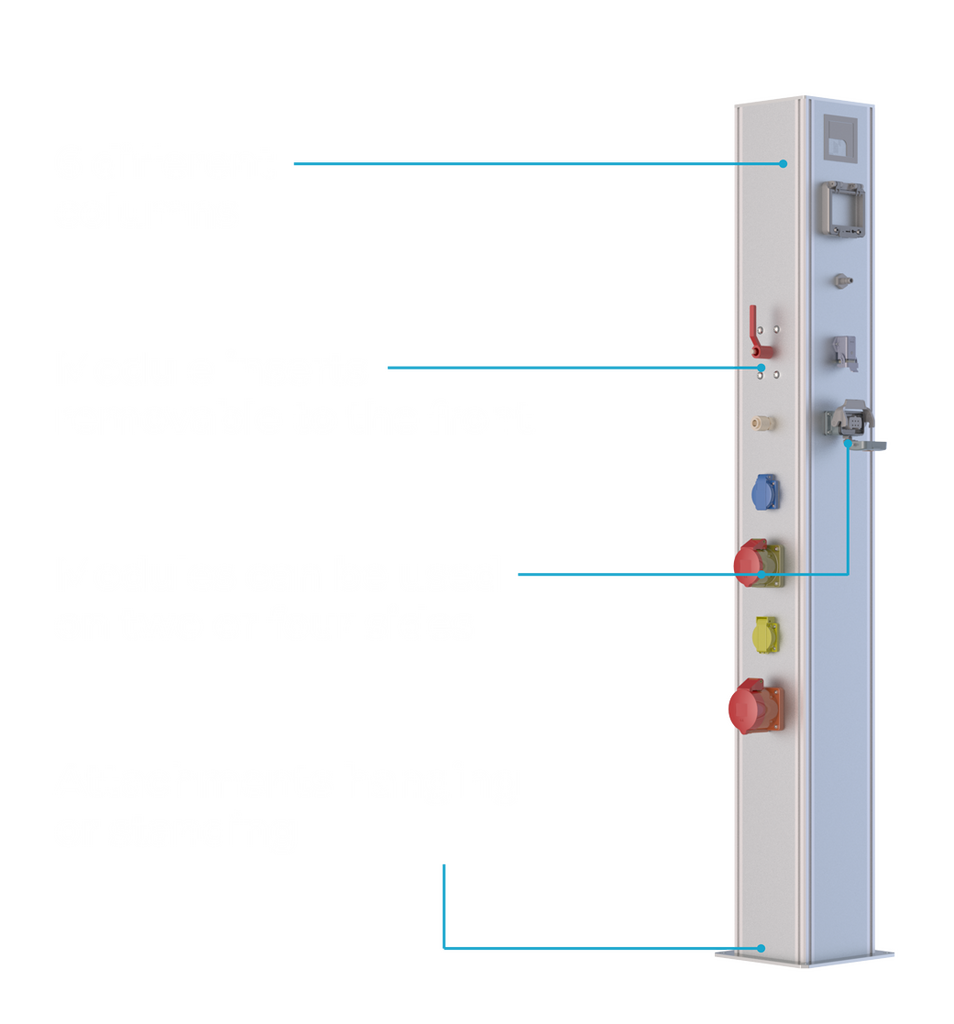

- All module inserts can be easily removed, replaced, or expanded from the front.

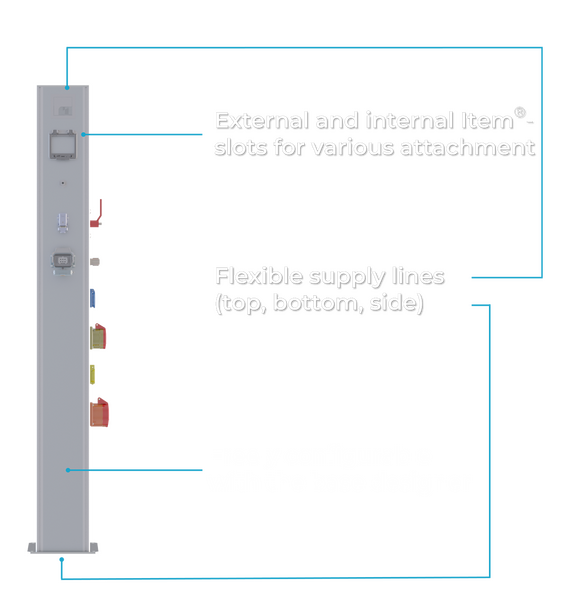

- Item-compatible grooves for individual attachments such as monitors, keyboards, parts holders, and lights.
- Protection class: IP20 or IP54.
- Hassle-free installation
- Freely selectable color options.
- Full pre-assembly, pre-wiring, and fusing provided; on-site assembly optional.
- Project planning, technical development, documentation, and CEDeclaration of Conformity included.
Energy Columns for Clean and Flexible Energy SupplyThe energy columns from eepos are the ideal solution for meeting today’s demands in modern production halls and flexible work environments. Modular, easy to position, and quick to assemble, they provide machines and workstations with all the necessary media, safely and directly on site.
- Electricity
- Technical gases
- Safeguarding
- Cooling water
- Compressed air
- Features
- Attachments
- Accessories

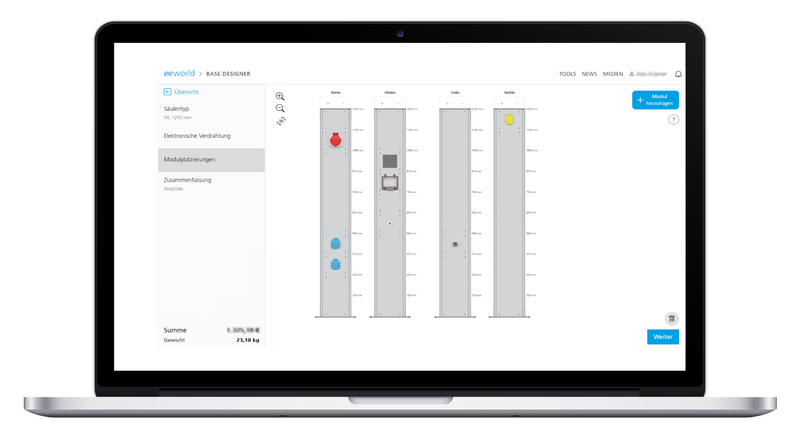

Configure Your Media ColumnWith our online tool, the base designer, you can configure your custom-equipped energy column in just a few minutes. Simply enter your desired dimensions, modules, and feed point—the base designer will generate all the technical data, a 3D view of your column, a parts list, and the price. It couldn’t be easier!
Column Types
Combine each column according to your needs, there are 3 options availableProfile types for the column widths of 130 mm, 175 mm, and 296 mm. All three widths can be combined. For use with jib cranes, we offer the profile types 190 mm x 190 mm and 250 mm x 250 mm.

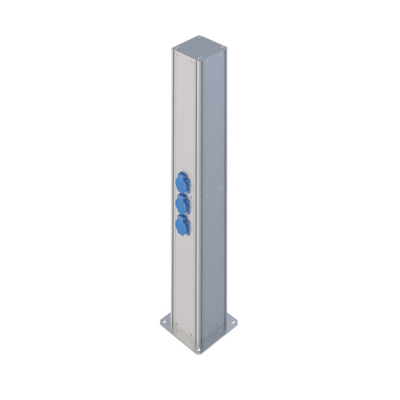

130 x 130
4 module sides
can be equipped

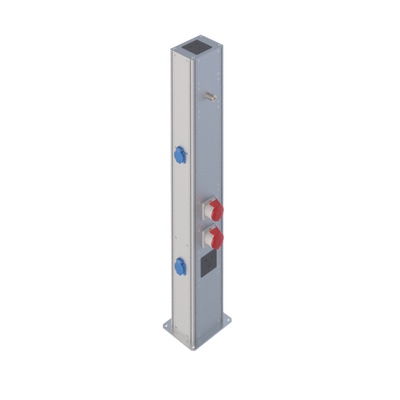

130 x 175
4 module sides
can be equipped

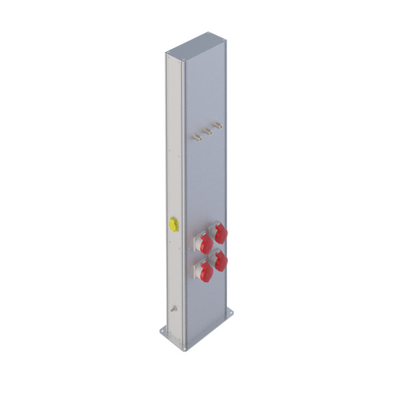

130 x 296
4 module sides
can be equipped
Partition possible

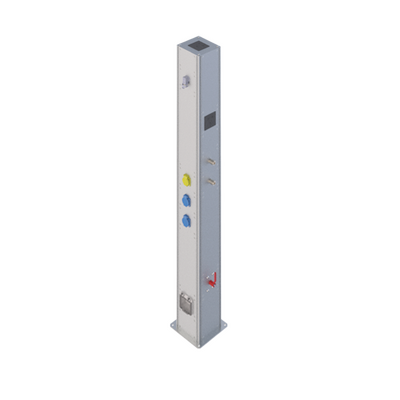

175 x 175
4 module sides
can be equipped
Partition possible

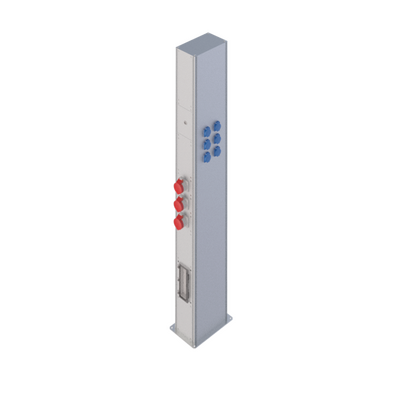

175 x 296
4 module sides
can be equipped
Partition possible

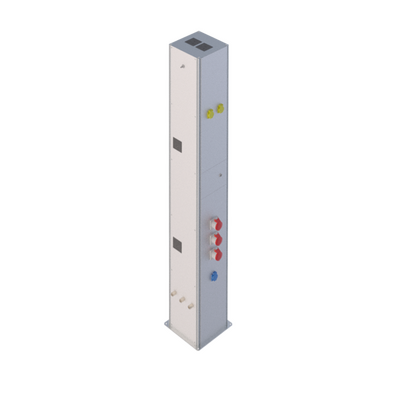

296 x 296
4 module sides
can be equipped
Partition possible
Profile size, color, featuresThere are five different profile sizes to choose from, ensuring a tailor-made solution for every application. The variety ranges from small and narrow media columns for the simplest requirements to large and solid energy columns, which offer the option of an additional crane boom.
For each of our products, we offer flexible lengths ranging from 500 mm to 6.000 mm, either fully custom or based on a fixed 125 mm grid. Depending on the intended use, the columns can be equipped with modules on two or four sides, as needed.

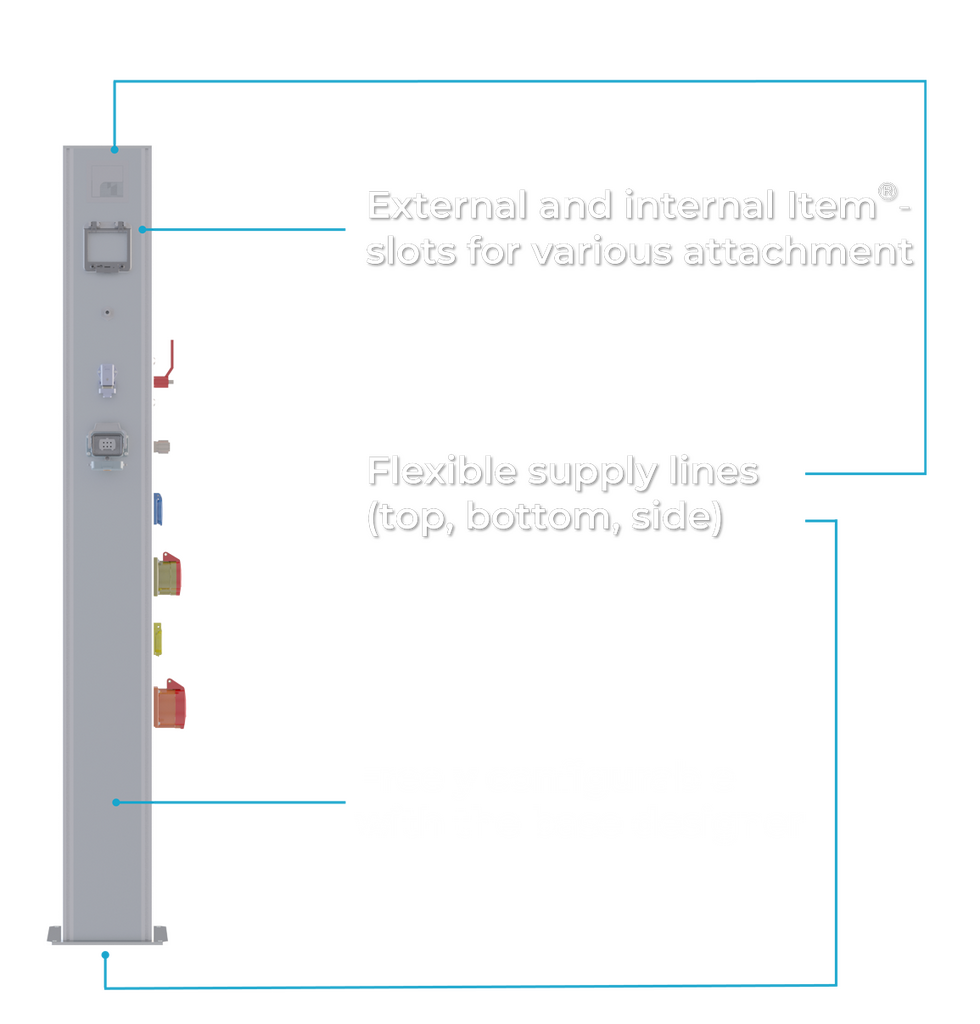

Example of a Media Column
You can choose freely from 15 module inserts and 3 cover plates when configuring our installation column. Below is an example column showing one possible configuration:
Energy Columns Mounting Options
Anything is possible: eepos base columns can be anchored to the floor with a base plate, mounted on the ceiling, or installed on an eepos crane. They can also be easily attached to a wall. Energy supply can be routed from below, the side, or from above.
ceiling Mount
Floor attachment

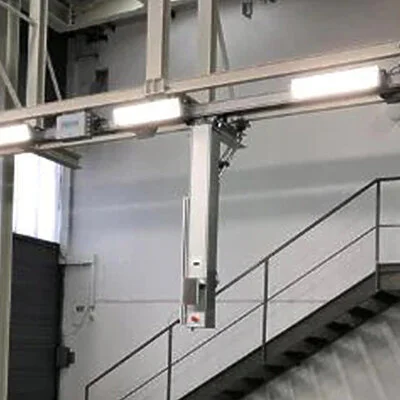

Attachment to the crane
Aluminum Energy Columns
Our columns are made of anodized aluminum (EN AW 6063 T66), which offers significant advantages over stainless steel.
- Easy processing
- Lightweight
- High stability with minimal material thickness
- High corrosion resistance
- Insensitivity to temperature variations.
- High UV resistance.
- Easy to clean surface.
- Odorless and hygienic.
- Non-magnetic.
- Eco-friendly: fully recyclable with low energy consumption.
- Exceptional durability.
- High-quality design.
Protection Class
The energy columns are delivered with protection class IP20 as standard. For certain media or upon request, protection class IP54 is also available.
What our customers say
“ROBUST, DURABLE AND RELIABLE. OUR WORKERS HAVE BECOME TRUE FANS OF EEPOS!”
Dieter Wettengl, Master Mechanical - Maintenance,
at the IVECO Magirus Fire Protection Center in Ulm

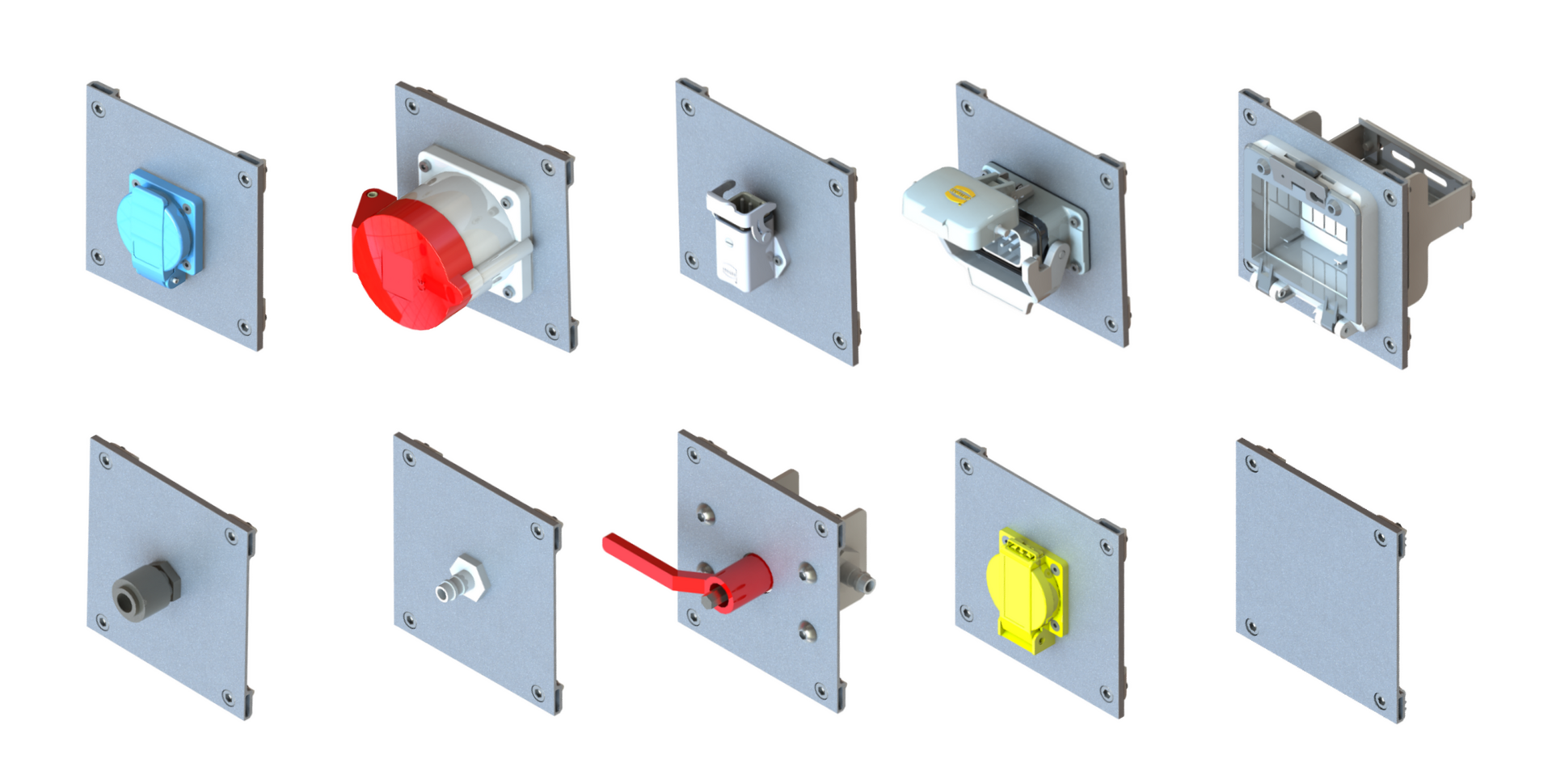

Modules for media columns
Our standardized modules can be installed on one to four sides, depending on the type of energy column. We can also integrate all customer-specific inserts into our product.
- Electricity options include Schuko sockets (230 V/16 A), industrial sockets (CEE 400 V/16 A or 400 V/32 A), main switches, safety windows (4 TE or 12 TE), Harting plugs, and much more.
- Fuse protection options: FI (RCD), LS, and combined FI/LS.
- Water: shut-off valve
- Compressed air options include compressed air couplings, safety quick couplings, supply lines, and shut-off valves.
- Signal options: Industrial connector (400 V/16 A) and 2-way Ethernet.
- Data: Ethernet CAT6
- Empty modules available in 3 sizes, serving as placeholders for future retrofitting.
- Cooling water options: flow and return lines with diameter and pressure customized to customer requirements, including shut-off valves.
- Gas options: N2, O2, according to customer requirements
For all media, we use the exact couplings you specify - manufacturer, size, quality, and function - upon request
Attachments & Accessories for Energy Columns
External item grooves make it easy to create your own extensions. Below is a selection of accessories available for our product:
- Monitors and keyboard mounts.
- Tool trays, bottle holders and brackets.
- Information signs and magnetic boards.
- Hoses and cable reels.
- Perforated sheets and worktops, for example, for workbenches.
- Universal cable management system.
- Task lighting and warning lights.

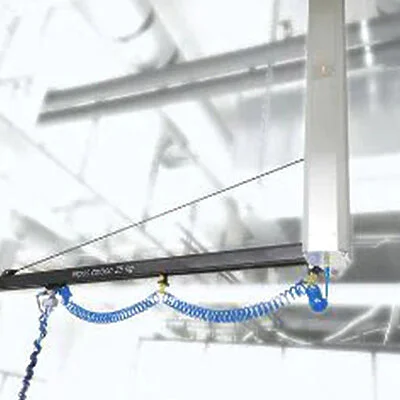

Some eepos base media column types can be equipped with an XS or nano swivel arm.
This combination ensures a space-saving and efficient working environment where loads can be moved flexibly and media supplied centrally.
This enhances safety and Ergonomics, avoiding tripping hazards and simplifying handling: the solution for your needs.
In addition to components and accessories, we also provide comprehensive services for the product, from consultation, project planning, and technical development to pre-wiring and assembly.
We are happy to organize delivery and on-site assembly for you, as well as provide the necessary documentation, including the CE Declaration of Conformity.
Our Service Package
- Consulting, project planning and technical elaboration.
- Pre-delivery wiring and assembly of the media columns.
- Shipping and on-site installation.
- Documentation including CE Declaration of Conformity.
In addition to our standard products, our technology department can develop and offer fully customized special solutions.
Energy columns for the workplace
FurnishingNext to the Crane Boom The energy columns can also be used to design workstations with smaller overhead conveyor systems. Our eepos nano series is particularly suitable for this.
The crane boom and the overhead conveyor system are used for material handling, tool holding, e.g. Balancers , and as routing systems for cables and hoses.
Our media columns in use at
AUTOMOTIVE
7 columns, with special construction.
- Media portal consisting of three media columns: two vertical support columns on the outside and one horizontal column spanning across the top, including two hanging columns.
- Media: electricity, data, and compressed air.
Application: Supply for a single assembly workstation, fed from above through a media column.
Media columns M2+
- Upside-down connection.
- Suspended 4 meters from the ceiling.
- Carbon boom for highly ergonomic load movement with integrated media supply (electricity and compressed air).
- Corridor-free.
Equipping the new 16.000-square-meter production hall for the e.Go electric car in Aachen with our eepos one aluminum rail system, combined with eepos base media columns. An e.Go assembly can be completed in just 17 hours. You can watch the assembly of the eepos one system in the new Aachen production hall here.
MECHANICAL ENGINEERING
21 energy columns with S8-flex profile.
- Frontal media access.
- One column housing 24 media connections.
- Special design based on customer TRUMPF’s requirements catalog.
- Rollable base plate.
Application: Flexible supply for laser machines.
Special features:
- Supply of technical gases (O₂ and N₂).
- Cooling water (supply/return), electricity (230V sockets: 16A, 32A, 63A), and compressed air are integrated into a single column using an internal separating plate.
103 energy columns combined with a 5-meter swiveling boom. Each S4 column is mounted on a steel support, with cable routing from the floor-level energy point, through the media column, and along an XS boom to enable media supply from above to machines. The system includes up to 15 meters of cable, supports currents up to 125 A, and provides compressed air, cooling water (supply/return), and data connections.
80 energy columns, profile L2+
- Direct cable supply via floor duct.
- Special floor plate development.
- Taking over the pre-wiring.
Application: Supplying individual workstations along the production line by utilizing the external grooves for perforated sheets, tool holders, and monitor mounts.
PLASTIC PROCESSING
24 energy columns, profile S8 flex.
- Current up to 125 A: 6 × 16 A, 2 × 32 A, and 4 × 230 V.
- Internal terminal strip and NH isolator.
- Ethernet.
- Cooling water flow and return.
- Includes a 1.500 mm aluminum boom for guiding the hose over the machine.
- Completely pre-wired and secured by eepos.

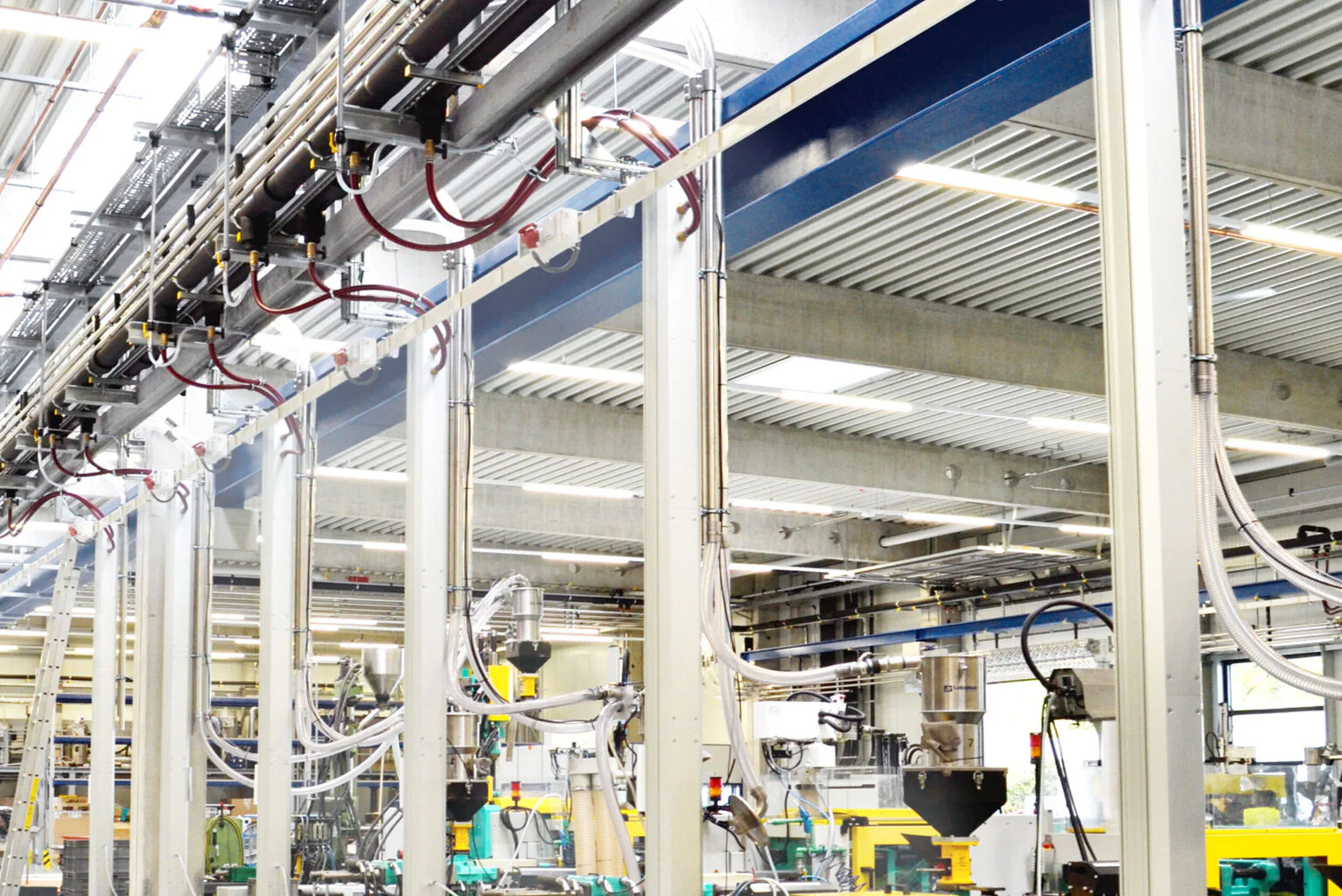

Application: Media supply for individual injection molding machines.
Practical examples of
eepos media column
eepos base at Flexa
Enhanced clarity in the production of protective hoses thanks to the eepos base media column M.
Discover the advantages of our free eeworld portal! Here, you can access tools for configuring crane systems and media columns, along with price lists, a wealth of downloads, and essential technical information.
The media column for energy, signals and your own solutions.
Easy and quick installation on walls and columns - for loads up to 500 kg.
Energy columns – supply machines and workplaces with all the media they need
Energy columns are the solution when it comes to supplying media to machines and workstations in industry. These columns can provide not only energy, but also other media such as compressed air, water, data, and even cleaning fluids. The various services available through various media columns increase the efficiency and productivity of employees. Since the required media are designed differently for each activity, it is crucial that they are directly available via the appropriate columns. Media columns are therefore an important part of the industrial infrastructure and the future of industrial production.
Maximize efficiency with the energy columns from eepos
Efficiency is the goal of every company that wants long-term success. With eepos energy columns, companies can maximize their efficiency in an innovative way. eepos energy columns are the perfect solution for companies that want to work intelligently and modernize. The energy-saving technology ensures that electrical energy is optimally distributed and utilized. Thanks to the versatility of these columns, they can be used not only as energy columns but also as media columns. This intelligent technology accelerates work processes and positively influences employee productivity. eepos energy columns – a worthwhile investment.
The advantages of the energy columns from eepos summarized
eepos power columns offer numerous advantages for any work environment. They ensure optimal supply of power, data, compressed air, gas, or cooling water to every workstation. Their complete flexibility in mounting them on the floor, ceiling, or crane is particularly noteworthy – media feed-in from above, below, or the side is also possible. Optional swivel booms with a load capacity of up to 100 kg and a boom length of 3 meters are available. Particularly noteworthy are the elegant and robust design and the aluminum housing, which offers high corrosion and scratch resistance. Furthermore, all modules can be easily removed from the front, replaced, or expanded. Power columns – also known as media cabinets or media centers – are therefore the perfect solution for efficient power, data, and media supply in any work environment.
Thanks to the item-compatible grooves, custom add-ons such as monitors, keyboards, component mounts, and lights can be easily integrated and adapted. The IP20 or IP54 protection rating also offers excellent protection for the installed electronics. Another advantage is the ease of installation. The color selection is freely selectable, and the columns are optimally prepared for on-site assembly – including project planning, technical design, documentation, and CE declaration of conformity.
It is also easy and practical to configure the energy column using our online configuration tool, “eepos base designer", to design.
Energy columns, also called media columns, are a worthwhile investment for any production environment.
Many mounting options for our energy and media column
The eepos base columns offer a variety of options for installing energy columns and media columns. The columns can be anchored to the floor with a base plate, or mounted on the ceiling or on an eepos crane. Fastening it to the wall is also no problem. As far as the energy supply is concerned, it is flexible and can be done from below, from the side or from above. With the eepos base energy columns you can design your energy and media supply according to your wishes and needs.
High-quality energy columns made of aluminum from eepos
Our high-quality energy columns from eepos are made of particularly robust anodized aluminum (EN AW 6063 T66). A big advantage over stainless steel is the low weight of the material, which still ensures high stability with less material use. Aluminum also offers high corrosion resistance, is temperature-resistant and UV-resistant, odorless, hygienic and non-magnetic. The energy columns are environmentally friendly and can be completely recycled. The design of the media columns is also particularly valuable. Whether as an energy column or media column, with our products you choose a long-lasting and stable solution for your projects.
Large selection of attachments and accessories
Our energy columns and media columns are complemented by a large selection of add-on parts and accessories. External grooves make it easy to create your own extensions and thus meet individual requirements. We have a variety of accessories, including monitor and keyboard mounts as well as tool trays, bottle holders and brackets. Information signs and magnetic boards, hose and cable reels, perforated sheets and worktops, for example for workbenches, are also available. We also offer a universal cable management system as well as workplace lighting and warning lights. With us you will find everything you need for the optimal use of our energy columns.
All-in-one service from eepos
With our all-in-one service, we not only offer you the components and accessories for your energy columns and media columns, but also a comprehensive service for all of our products. From advice and project planning to technical development and pre-wiring – we are at your side to optimally implement your product. We will also be happy to organize assembly on site for you and create the appropriate documentation for you, including a CE declaration of conformity. With our service package you can rely on the fact that your energy columns and media columns are in the best hands.
Get a non-binding consultation for our energy columns now
Would you like to find out more about our energy columns? Then get a non-binding consultation now. Our energy columns come in different designs, from the energy-saving energy column to the intelligent media column. Each of our energy columns is individually tailored to your requirements. You can choose between different colors and designs to perfectly adapt your energy column to the surroundings.
Contact us today and let us find the best solution for you together.
