eepos line – the infrastructure for modular and flexible production

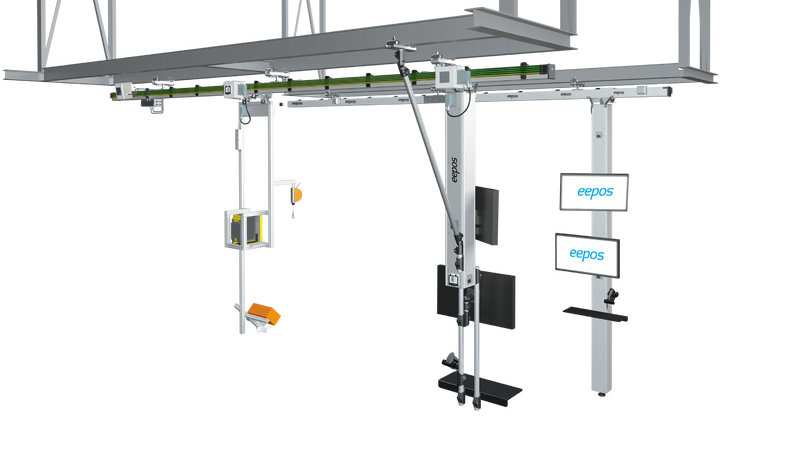

Belt superstructure (BOK system)
Floor-Free Media Supply for the Entire Production Line
With the BOK system from eepos, you ensure a consistent basic power supply for assembly technology along the entire assembly line.
This forms the basis for a modular, rapidly adaptable assembly concept for any industry.
The BOK conveyor superstructure ensures the availability of energy and data along the assembly lines, allowing a wide variety of handling devices to be easily connected and assembly processes to be modified in minimal time. All components of the BOK system are standardized and ready for connection, and they can be flexibly retrofitted or adjusted at any time.
- Continuous energy supply along the assembly lines is provided through busbars located on the left and right sides of the line.
- Data and energy are supplied along the entire belt superstructure.
- Integration of crane bridges is possible.
- The energy supply, along with various areas such as handling technology, screwing technology, IT, and more, can be connected to your own devices via eepos base media columns.

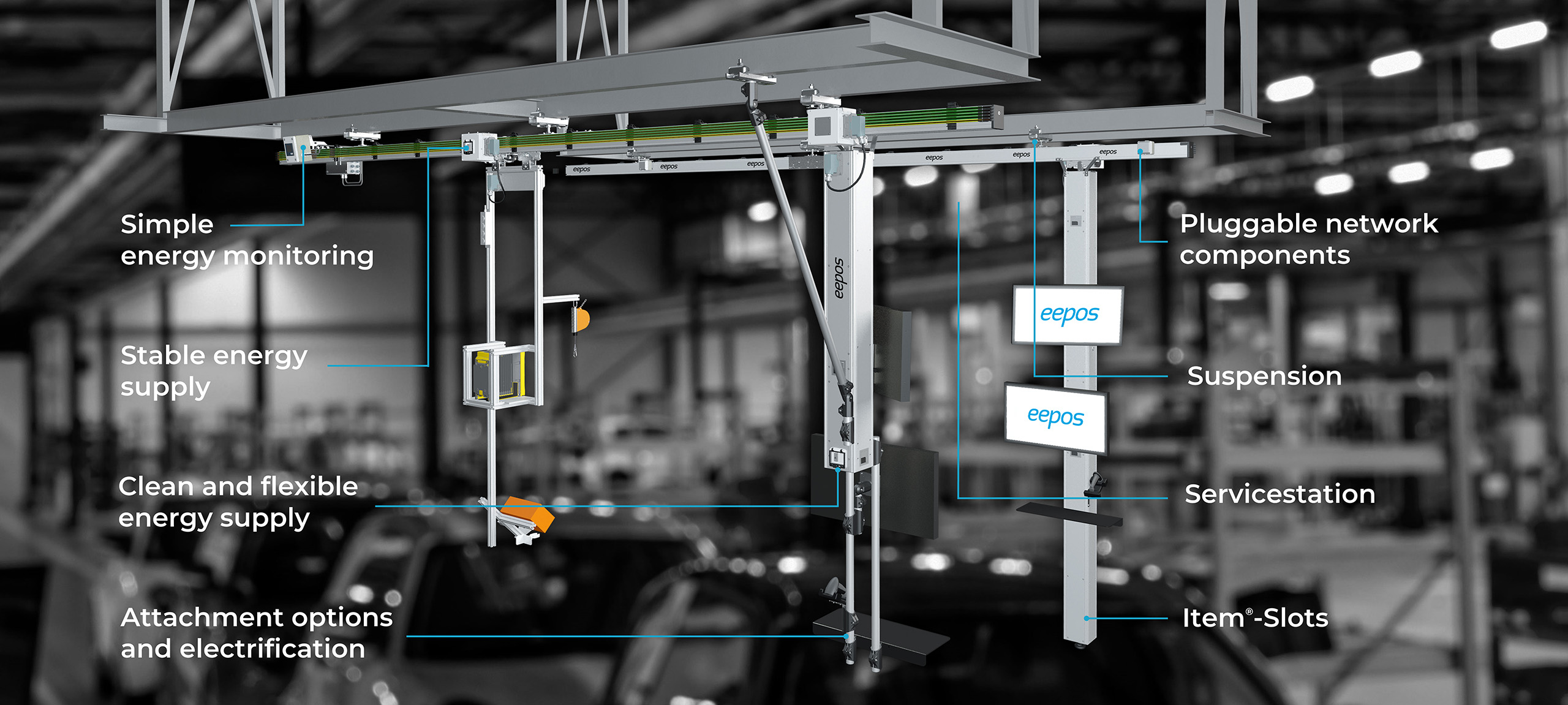

The Belt Superstructure at a Glance
Simple energy monitoring
Clean and flexible energy supply
Cultivation options & electrification
Pluggable network components

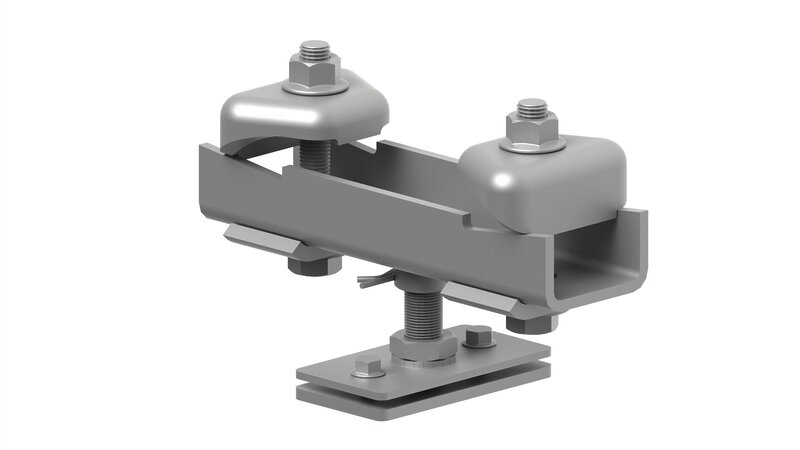

Suspension solutions
The secure connection for your eepos media infrastructure or your eepos crane system
- For attachment to I-beams
- Adjustment range in height of -15/+5mm
- Three different sizes for flange widths
from 50 – 310 mm
For easy control
Item profile grooves
The Advantages of the BOK System
- A modular, highly flexible system
- Continuous energy supply wherever you need it
- Simplified factory planning, with easy adjustments possible later (greenfield)
- Easy integration into existing structures, such as Siemens rail systems (brownfield integration)
- A quickly scalable system with flexibly pluggable components
- New requirements can be implemented rapidly
- Each component can be individually customized
- Commissioning with flexibility
- Rapid switching
- Development of compatible standards for external devices and handling technology.
- Energy monitoring available.
- Simple assembly.
- Extremely low maintenance.
- No more complex or costly dismantling required.
- No waste of resources.
- No extra cables or components needed.
- Connect without expensive electrician work.
- Reclocking without production downtime.
The integrated measuring device with LCD display enables current measurement up to 100 A on three phases. It is compatible with power rails from a wide range of manufacturers, giving you a rela-time overview of the entire line power's consumption. Our modular busbars ensure the fast and effortless energy distribution along the entire conveyor superstructure.
eepos base energy columns can be easily connected to any eepos aluminum profile, providing an electrical and mechanical infrastructure along the entire assembly line. Other handling technology can be quickly and easily integrated. Using our online tool, base designer, you can configure your custom-equipped energy column in just a few minutes.
Mounting options & power supply for the conveyor superstructure
Energy columns from the BOK system distribute power and data, making it easy to connect monitors, scanners, or storage devices.
Pluggable networking solutions for the BOK system
Depending on your needs and configuration, the network components allow you to set up your an independent Ethernet network for data transmission at the station or on the conveyor - without tedious manual wiring and uncertain bandwidth.
Suspension solutions for the BOK system
A secure connection for your eepos media infrastructure or your eepos crane system. Available in different sizes with maximum flexibility.
The Service Station
For easy control, the replacement of a chassis or the addition of further rollable components can be carried out seamlessly within the BOK system.
Re-clocking has never been quicker and easier
eepos line ensures the availability of mechanical and electrical standard media along the assembly line. All components are standardized and ready for connection. You can convert flexibly and cleanly at any time.
Our BOK system, eepos line, is already used along the production line worldwide by numerous automobile manufacturers such as BMW, Audi, e.Go and Tesla.
What our customers say
“FOR THE FIRST TIME WE HAD NO PROBLEMS WITH THE AVAILABILITY OF SOCKETS AFTER BUILDING A NEW PLANT.”
Operator of the BMW plant in San Luis Pontosi, Mexico
Our service and assembly team offers a wide range of service products to ensure that your overhead cranes operate efficiently and safely throughout their entire life cycle. In addition to the legally required UVV test, we evaluate your system with respect to optimal design, quality, safety, and compliance with legal regulations such as the Industrial Safety Ordinance and the DGUV. eepos Service also keeps you informed about new eepos products that could further optimize the use of your BOK system.
Discover the advantages of our free eeworld portal! Here, you can access tools for configuring crane systems and media columns, along with price lists, a wealth of downloads, and essential technical information.
The media column for energy, signals and your own solutions.
Easy and quick installation on walls and columns - for loads up to 500 kg.
What is the eepos belt superstructure (BOK)?
A conveyor superstructure (BOK) is a system used in modern manufacturing to ensure the continuous supply of power and data along the entire assembly line. This system enables easy connection of various handling devices and enables quick reconfiguration of assembly processes.
The BOK system, as provided by eepos, consists of standardized and ready-to-connect components that can be easily retrofitted or adapted. It includes busbars for continuous power supply, the integration of crane bridges and the connection of various areas such as handling technology, screw technology and IT through eepos basic media columns.
An integrated meter enables power measurement up to 100A in three phases and can be attached to busbars from different manufacturers. The modular power distribution system from eepos ensures a quick and uncomplicated energy supply along the entire BOK.
The BOK systems offer mounting and electrification options, allowing the addition of accessories such as monitors, scanners and bearings. Network components enable the creation of an Ethernet network for data transmission without manual cabling. Suspension solutions for the media infrastructure from eepos or crane systems that offer flexibility and easy control are also available.
The system can be easily customized and expanded with standardized profile slots in eepos's aluminum profiles, including threaded slots in eepos's basic energy columns.
The role of busbars in the BOK
Busbars play an important role in the conveyor superstructure (BOK). They are an essential part of the energy system and ensure a continuous energy supply along the entire assembly line.
Busbars are essential in industrial production and assembly as they provide the connection between the various handling devices and the energy source. They enable quick and flexible reconfiguration of assembly processes because they can be easily connected to different machines and devices.
An electric busbar is integrated into the BOK system by installing it at the appropriate locations along the assembly line. It is designed to be easily retrofitted or customized to meet the specific needs of each production line.
The importance of energy supply in the workplace
A reliable energy supply in the workplace is crucial to maintaining productivity and efficiency. In industrial environments, such as assembly lines and manufacturing areas, energy supply is essential for the operation of machines, devices and lighting systems. Without a continuous power supply, these systems could not function and production could come to a standstill.
In addition, an optimal energy supply contributes to occupational safety. Adequate lighting and functioning air conditioning can help prevent accidents and create a comfortable work environment.
The BOK system helps ensure a reliable power supply by enabling continuous power supply along the entire assembly line. Additionally, the BOK system offers flexibility through its modular design, allowing for easy customization and expansion to meet the specific needs of each production line.
The modular system – modular and flexible
A modular and flexible design is a crucial factor for the efficiency and adaptability of an energy system. The BOK system is a prime example of this type of design.
The modularity of the BOK system allows for easy integration and adaptation to different production environments. Because the system consists of standardized and ready-to-connect components, these can be easily added, removed or reconfigured to meet the specific needs of each production line.
The flexibility of the BOK system is reflected in its ability to ensure a continuous supply of energy along the entire assembly line. Regardless of the specific layout or machine configuration, the BOK system can ensure a stable and reliable power supply.
In addition, the flexibility of the BOK system contributes to energy efficiency. The ability to customize the system to the specific needs of each production line allows companies to optimize their energy consumption patterns and avoid unnecessary energy consumption.
Support frame with electricity – A solution for the belt superstructure from eepos
The supporting frame with electricity is an innovative solution for the belt superstructure (BOK) from eepos.
The main advantages of this system are its flexibility and efficiency. Due to its modular design, it can be easily adapted to different production environments. It allows for quick and easy reconfiguration of assembly processes as it can be easily connected to various machines and devices.
In addition, the supporting frame with electricity is an efficient solution for energy supply. It ensures continuous and stable power supply along the entire assembly line, resulting in higher productivity and reduced downtime.
The eepos powertracks are an integral part of this system. They are attached to the upper band of an eepos one profile and pushed into one another. This allows for quick and easy installation and customization of the system.
A power system ready for connection in the BOK – a practical solution
A ready-to-connect power system in the conveyor superstructure (BOK) is a practical solution that makes the installation and commissioning of handling and screwing technology easier. This system is designed to connect directly to existing infrastructure, significantly reducing installation effort.
In addition, a ready-to-connect power system helps improve operational efficiency. It ensures a reliable and continuous energy supply. By avoiding downtime and production interruptions, the system can help increase overall productivity.
