eepos eedrive – Effortlessly Move Loads up to 1 ton Electrically
The electric crane motor
The Electric Crane Motor for Your Crane
Our industrial gear solutions provide the necessary torque to move heavy loads with low power consumption. This is because, in crane drives, usually only the movement resistance needs to be overcome.
With our stable and robust eedrive crane motor, you can rely on quiet and dependable operation of your crane systems and hoists, even under mechanical shocks, vibrations, or overloads.
Compact, powerful, and cost-efficient, the eedrive crane drive is the perfect addition to any eepos crane system. The optional parameterization app allows you to expand the eedrive with functions tailored to your specific application.

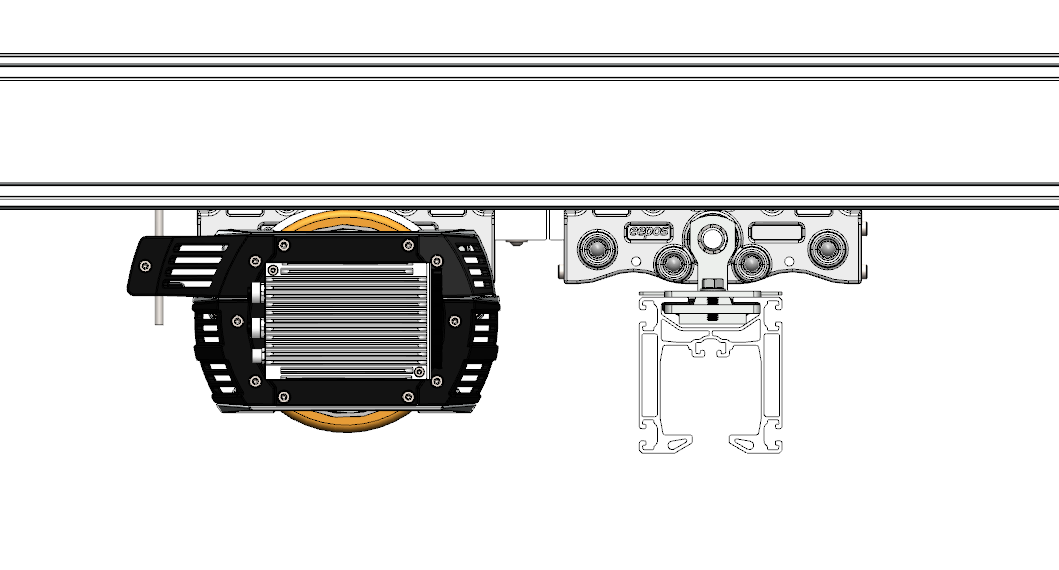

The Gearless Servo Motor for Crane Systems
Technical Data for eepos Crane Motor
- Permanent-Magnet Synchronous Motor
(more about the advantages of PMSM) - Integrated servo controller
- Gearless (direct drive)
- Towing drive
- Tensile load up to 1 ton
- Travel speed: 1-94 m/min
- Motor voltage: 48 V, control voltage: 24 V
Features of the eedrive
- 2-stage or stepless control
(e.g., via crane block or PLC) - Drives completely below the profile
- Small and compact design
- Optional: the eedrive app for easy and convenient parameter changes
- Additional functions can be added to the basic version, even at a later date
The Advantages of an Electric Crane
A crane motor offers numerous advantages for use in crane systems. Here are some of the key benefits:
- Reliability: Crane engines are designed for continuous operation in challenging environments, offering high reliability and long service life.
- Performance: Crane motors provide high power and torque, essential for the efficient and precise operation of the crane system.
- Construction: Crane motors are robustly built and can withstand the high loads encountered in crane applications.
- Efficiency: Crane motors are energy-efficient and help reduce operating costs.
- Controllability: Crane motors are easy to control and deliver precise positioning for the crane's movements.
- Integrability: Crane motors can be easily integrated into various crane systems, simplifying installation and maintenance.
- Safety: Crane engines meet the highest safety standards and help prevent accidents and equipment damage.
A permanent-magnet synchronous motor (PMSM) is commonly used in applications requiring higher speeds and precise control. A PMSM consists of a permanent magnet and an electrical stator, which is supplied with voltage to create an electromagnetic field.
The permanent magnet generates a constant magnetic field that controls the motor's rotational movement without the need for an external electric field. Consequently, PMSMs do not require an external power source to maintain the magnetic field, which enhances the motor's efficiency and reliability.
PMSMs have lower inductance and higher power density compared to other types of electric motors. They can achieve high speeds and torques, making them a popular choice for motion control, robotics, and automation applications.
The eedrive motor offers maximum flexibility, even after purchase. Additional modules can be bought or activated at any time, allowing you to modify parameters as needed. Note that the delivered eedrive cannot be parameterized without first purchasing the modules described below.
Discover the advantages of our free eeworld portal! Here, you can access tools for configuring crane systems and media columns, along with price lists, a wealth of downloads, and essential technical information.
The media column for energy, signals and your own solutions.
Easy and quick installation on walls and columns - for loads up to 500 kg.
The advantages of the eepos eedrive electric crane motor
Our electric crane drive offers numerous advantages for your business. With our industrial gear solutions you are able to move large weights with minimal power. All you do is overcome the resistance to movement, which enables high efficiency and effectiveness.
Our eedrive crane motor also scores points with its stability and robustness, so that even mechanical shock loads, vibrations or overloads do not pose a challenge.
The eedrive is compact, powerful and cost-efficient and is therefore the perfect addition to any eepos crane system. The optional parameterization app also allows you to specifically expand functions and thus exploit the full potential of the eedrive for your applications.
That's why you should also switch to electric crane motors
If you operate a crane, you certainly know how important it is to rely on a reliable crane drive. Classic crane engines have served well in the past, but there is now an increasingly better alternative: the electric crane engine.
The electric crane drive has the advantage that its technical properties make it much more efficient than conventional engines. Not only is it quieter, it is also more energy efficient and requires less maintenance. Why shouldn't you switch to the advantages of an electric crane motor?
Let one of our experts advise you on the eepos eedrive electric crane motor without obligation!
Technical data and features of our electric crane motor
Our electric crane motor is equipped with a permanently excited synchronous motor and has numerous advantages that are reflected in its technical data.
The integrated servo controller ensures precise positioning of the drive, and thanks to the gearless direct drive it is extremely efficient.
The towing drive enables a pulling load of up to 1 t and a travel speed of 1-94 m/min.
With a motor voltage of 48 V and a control voltage of 24 V, our electric crane drive offers impressive performance.
The special thing about the eedrive is its small and compact design, which allows it to drive completely below the profile. The 2-stage or stepless control via crane block or PLC makes it particularly flexible in use and allows the parameters to be easily changed via the eedrive app.
With the option to add additional functionality, our electric crane motor provides an efficient and flexible solution for your material and goods handling requirements.
Maximum flexibility with the eepos eedrive electric crane motor
The eepos eedrive electric crane motor offers the greatest possible flexibility for all areas of application in the area of electric crane drives. With the option to purchase or activate modules at any time, adaptation to individual requirements is guaranteed at all times. By purchasing appropriate modules, parameters can be changed and the eedrive can be optimally tailored to the respective task. This flexibility enables efficient work and ensures maximum performance of the electric crane motor.
